Titanium

Titanium Flange Specification:


RANGE:1/2" (15 NB) to 48" (1200NB)

FLANGE STANDARDS: ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, BS, GOST, MSS SP-44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605
TYPES : FLAT FACE FLANGE (FF), RAISED FACE FLANGE (RF), RING JOINT FLANGE (RTJ), LAP JOINT FLANGE, MALE AND FEMALE FLANGE (M&F), LARGE AND SMALL TONGUE-AND-GROOVE FLANGE (T&G)

TITANIUM GRADES: GRADE 1 TITANIUM , GRADE 2 TITANIUM , GRADE 3 TITANIUM , GRADE 4 TITANIUM , GRADE 5 TITANIUM , GRADE 7 TITANIUM , GRADE 9 TITANIUM , GRADE 12 TITANIUM , GRADE 23 TITANIUM ,



Titanium Fasteners Specification:


RANGE:M3 - M56 | 3/6" to 2" | CUSTOM SIZES
Fasteners STANDARDS : ASTM B348/ ASME SB348
LENGTH:6mm to 500mm

TYPES : TITANIUM HEX BOLTS, TI STUD BOLTS, TITANIUM ALLOY SCREWS,TI ALLOY WASHERS, TITANIUM THREADED ROD,TITANIUM SOCKET HEAD CAP SCREWS

TITANIUM GRADES: GRADE 1 TITANIUM , GRADE 2 TITANIUM , GRADE 3 TITANIUM , GRADE 4 TITANIUM , GRADE 5 TITANIUM , GRADE 7 TITANIUM , GRADE 9 TITANIUM , GRADE 12 TITANIUM , GRADE 23 TITANIUM ,

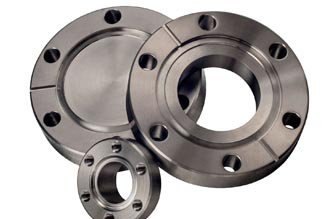

Titanium Flange

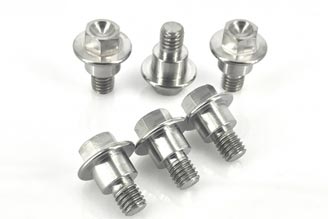

Titanium Fastener






Chemical Compositions:


Grade C N O H Ti Fe
Titanium Grade 1 .08 Max .03 Max .18 Max .015 Max Bal .20 Max
Titanium Grade 4 .08 Max .05 Max .40 Max .015 Max Bal .50 Max
Titanium Grade 7 .08 Max .03 Max .25 Max .015 Max Bal .30 Max
Titanium Grade 9 .08 Max .03 Max .15 Max .015 Max – .25 Max
Titanium Grade 12 .08 Max .03 Max .25 Max 0.15 Max – .30 Max


Mechanical Properties :


Density Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
4.5 G/Cm3 1665 °C (3030 °F) Psi – 39900 , MPa – 275 Psi – 49900 , MPa – 344 20 %
4.43 G/Cm3 1632 °C (2970 °F) Psi – 128000 , MPa – 880 Psi – 138000 , MPa – 950 14 %
