Nickel Alloy

Nickel Alloy Flange Specification:


RANGE:1/2" (15 NB) to 48" (1200NB)

FLANGE STANDARDS: ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, BS, GOST, MSS SP-44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605
TYPES : FLAT FACE FLANGE (FF), RAISED FACE FLANGE (RF), RING JOINT FLANGE (RTJ), LAP JOINT FLANGE, MALE AND FEMALE FLANGE (M&F), LARGE AND SMALL TONGUE-AND-GROOVE FLANGE (T&G)

NICKEL ALLOY GRADES : NICKEL ALLOY 800H, NICKEL ALLOY 405, NICKEL ALLOY 625+, NICKEL ALLOY 925, NICKEL ALLOY X-750, NICKEL ALLOY X, NICKEL ALLOY L-605, NICKEL ALLOY K-500, NICKEL ALLOY C-276 .



Nickel Alloy Fasteners Specification:


RANGE:M3 - M56 | CUSTOM SIZES
Fasteners STANDARDS : ASME B16.5 ANSI B 28.2.4 1M ANSI B 18.2.4 2M ASME B18.5 ASME B18.2.2
LENGTH:6mm to 500mm

TYPES : PURE NICKEL BOLTS AND NUTS , NICKEL ALLOY STUDS , NICKEL ALLOY STUD BOLT,BRUSHED NICKEL WASHER,NICKEL ALLOY BOLTS,NICKEL ALLOY HEX BOLTS

NICKEL ALLOY GRADES : NICKEL ALLOY 800H, NICKEL ALLOY 405, NICKEL ALLOY 625+, NICKEL ALLOY 925, NICKEL ALLOY X-750, NICKEL ALLOY X, NICKEL ALLOY L-605, NICKEL ALLOY K-500, NICKEL ALLOY C-276 .







Nickel Alloy Flange

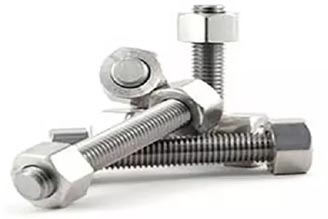

Nickel Alloy Fastener






Chemical Compositions:


Chemical elements %
Grades Ni Fe Mn Si C S Cu
Nickel alloy 200 99.00 40 0.35 0.35 0.15 0.01 0.25
Nickel alloy 201 99.00 0.40 0.35 0.35 0.02 0.01 0.25


Mechanical Properties :


Grades Properties Metric Imperial
Nickel alloy 200 Tensile strength 462 MPa 67000 psi
Yield strength 148 MPa 21500 psi
Elongation at break 45% 45%
Nickel alloy 201 Tensile strength 403 MPa 58500 psi
Yield strength 103 MPa 14900 psi
Elongation at break 50% 50%
