Super Dulpex Steel Flange Specification:

RANGE:1/2" (15 NB) to 48" (1200NB)

FLANGE STANDARDS: ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092

SUPER DUPLEX STEEL GRADES : SUPER DUPLEX 2507 , ZERON 100 , SUPER DUPLEX 2507 , SUPER DUPLEX 2507 , ZERON 100 , FERRALIUM 255 , UNS S32707 , UNS S39274 , SAF 2507 , URANUS 52N , SDSS 254 SMO , UNS S32750 F53 , F55ZERON 100 , FERRALIUM 255 , UNS S32707 , UNS S39274 , SAF 2507 , URANUS 52N , SDSS 254 SMO , UNS S32750 F53 , F55 FERRALIUM 255 , UNS S32707 , UNS S39274 , SAF 2507 , URANUS 52N , SDSS 254 SMO , UNS S32750 F53 , F55.

Super Duplex Steel Fasteners Specification:

BOLT / SCREW RANGE : M3 - M56 | 3/6" to 2" | CUSTOM SIZES
NUTS SIZE : M3 - M56 | 3/6" to 2" | CUSTOM SIZES
WASHER SIZE : M3 - M56 | 3/6" to 2" | CUSTOM SIZES
MACHINE SCREW SIZE : M1.6 - M12
SELF TAPPING SCREW SIZE : No.2 - No. 14

TYPES : DUPLEX 2205 NUT BOLT, HEX BOLTS, STUDS, THREADED ROD, SCREWS, WASHER, SOCKET HEAD CAP SCREW, 2205 HEAVY HEX HEAD BOLTS

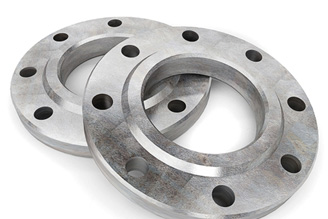

Duplex Steel Flange

Duplex Steel Fastener

Chemical Compositions:

Alloy	C	Si	Mn	P	Cr	Ni	N	Mo	S	Cu	Fe
S32750	0.03	0.8	1.2	0.035	24.0-26.0	6.0-8.0	0.24-0.32	3.0-5.0	0.02	0.5	Bal

Mechanical Properties :

Tensile Strength, Mpa (Ksi), Min	Yield Strength, MPa (Ksi), Min	Elongation, %, Min	Hardness, Brinell HB
795 (116)	550 (80)	15	310 Max

Super Duplex Steel
