Flanges

Flanges Specification:


FLANGE ANSI, ASME B16.5 : SIZE 1/2" - 24"

: CLASS 150LB, 300LB, 600LB, 900LB, 1500LB AND 2500LB

FLANGE ASME B16.47 SERIES A/MSS SP-44 : SIZE 26”-48”

FLANGE ASME B16.47 SERIES B/API 605 :  SIZE 26”-48”

FLANGE FACINGS : RF (RAISE FACE), FF (FLAT FACE), (RTJ) RING TYPE JOINT,

LARGE TONGUE & GROOVE, SMALL TONGUE & GROOVE

THE FLANGES ARE AVAILABLE IN VARIOUS MATERIALS
INCLUDING STAINLESS STEEL ,DUPLEX STEEL ,SUPER DUPLEX STEEL ,
NICKEL ALLOY ,INCONEL ,FERROALLOY ,TITANIUM & HASTALLOY



TYPE OF FLANGES :

  • SLIPON FLANGE (SORF)
  • WELD NECK FLANGE (WNRF)
  • PLATE FLANGE
  • BLIND FLANGE (BLRF)
  • LONG WELD NECK FLANGE (LWNRF)
  • ORIFICE FLANGE
  • SOCKET WELD FLANGE (SWRF)
  • RING TYPE JOINT (RTJ)
  • WELDO FLANGE
  • LAP TYPE JOINT (LTJF)
  • SPACER RING
  • NIPO FLANGE
  • SCREWED
  • SPECTACLE BLIND
  • API 6X TYPE 6B/6BX
  • REDUCING FLANGE
  • EXPANDING FLANGE
  • SWIVEL FLANGE
  • SPACER BLIND
  • THREADED FLANGE
  • AS PER CLIENT REQUEST

TYPE OF FLANGES :

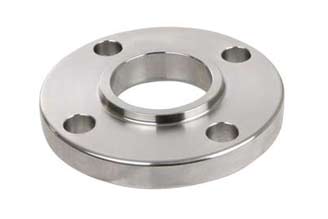

Slip on Flange

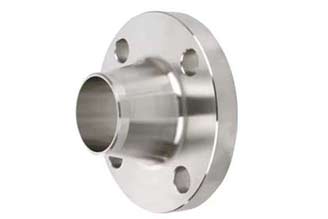

Weld neck Flange

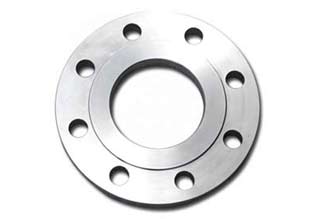

Plate Flange

Blind Flange

Long weld neck Flange

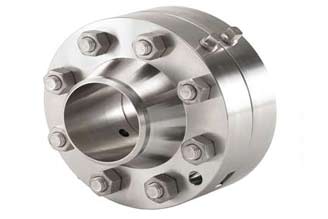

Orifice Flange

Socket weld Flange

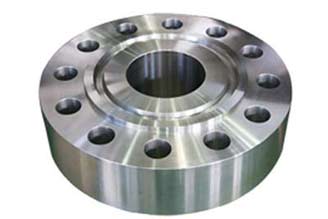

ring joint Flange

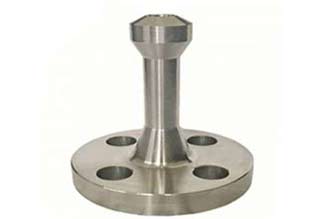

Weldo Flange

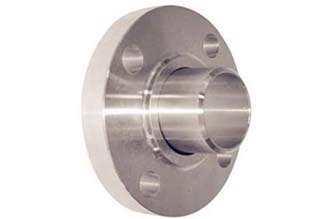

Lap Joint Flange

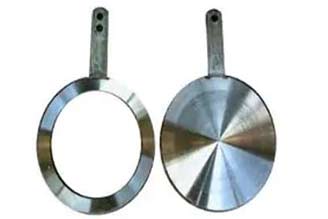

Space ring Flange

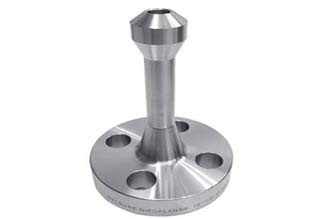

Nipo Flange

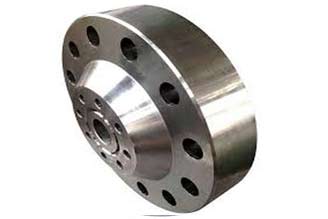

API 6X TYPE 6B/6BX

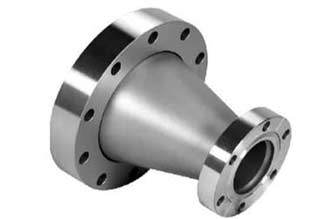

Reducing Flange

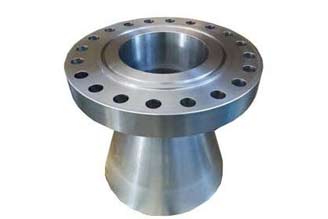

Expanding Flange

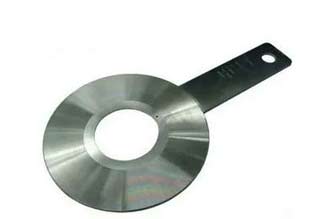

Spacer Blind Flange

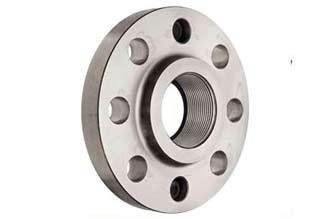

Thraeded Flange

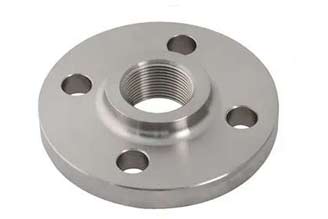

Screwed Flange

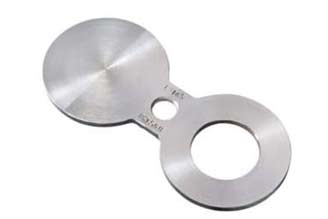

Spectacle Blind Flange

Swivel Flange
