Inconel Flange Specification:
RANGE:1/2" (15 NB) to 48" (1200NB)
FLANGE STANDARDS: ANSI/ASME B16.5, B16.47 Series A & B,
API7S-15, API7S-43, API605, B16.48, BS4504, MSS S44, ISO70051, BS 10, EN-1092, DIN,
ASME/ANSI B16.5/16.36/16.47A/16.47B, JISB2220, BS1560-3.1, EN1092

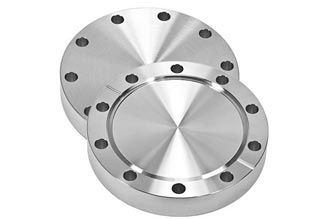

TYPES : FLAT FACE FLANGE (FF), RAISED FACE FLANGE (RF), RING JOINT FLANGE (RTJ), LAP
JOINT FLANGE, MALE AND FEMALE FLANGE (M&F), LARGE AND SMALL TONGUE-AND-GROOVE FLANGE
(T&G)
INCONEL GARDES : INCONEL 600 , INCONEL 601 , INCONEL 617 , INCONEL 625 , INCONEL 690 , INCONEL 706 , INCONEL 718 , INCONEL 725 , INCONEL X-750 , INCONEL 751 , INCONEL 783 , INCONEL 792 , INCONEL 939 , INCONEL 740H , INCONEL 783 , INCONEL 783.
Inconel Fasteners Specification:
RANGE:M3 - M56 | CUSTOM SIZES
Fasteners STANDARDS : ASME B16.5
ASTM B637 / ASME SB637ASTM B670 / ASME SB670ASTM A1014 / A1014MASTM F2281AMS 5666Alloy 718UNS N07718DIN / EN / Werkstoff No. 2.4668
LENGTH:6mm to 500mm

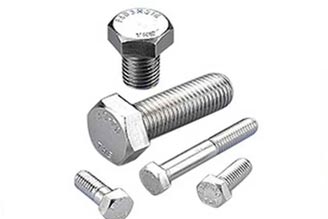

TYPES : INCONEL BOLTS AND NUTS , INCONEL STUDS , INCONEL STUD BOLT,BRUSHED INCONEL WASHER, INCONEL BOLTS,INCONEL HEX BOLTS
INCONEL GARDES : INCONEL 600 , INCONEL 601 , INCONEL 617 , INCONEL 625 , INCONEL 690 , INCONEL 706 , INCONEL 718 , INCONEL 725 , INCONEL X-750 , INCONEL 751 , INCONEL 783 , INCONEL 792 , INCONEL 939 , INCONEL 740H , INCONEL 783 , INCONEL 783.
Chemical Compositions:
| Inconel | Chemical Element % | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cr | Mo | Fe | Co | Ni | Ti | Nb | S | Mn | Cu | P | Al | Si | C | B | |
| 600 | 14.0-17.0 | – | 6.0-10.0 | – | 72.0 | – | – | 0.015 | 1.0 | 0.5 | – | – | 0.5 | 0.15 | – |
| 601 | 21.0 – 25.0 | – | Balance | – | 58.0 – 63.0 | – | – | 0.015 | 1.0 | 1.0 | – | – | 0.5 | 0.10 | – |
| 625 | 20.0-23.0 | 8.0-10.0 | 5.0 | 1.0 | 58.0 | 0.4 | 3.15-4.15 | 0.015 | 0.5 | 0.015 | 0.4 | 0.5 | 0.1 | – | |
| 718 | 17.0-21.0 | 2.8-3.3 | balance | 1.0 | 50.0-55.0 | 0.3 | 4.75-5.5 | 0.015 | 0.35 | 0.2-0.8 | 0.015 | 0.65-1.15 | 0.35 | 0.08 | 0.006 |
| X-750 | 14.0-17.0 | – | 5.0-9.0 | 1.0 | 70.0 | 2.25-2.75 | 0.7-1.2 | 0.01 | 1.0 | 0.5 | – | 0.4-1.0 | 0.5 | 0.08 | – |
| 800 | 19.0-23.0 | – | 39.5 | – | 30.0-35.0 | 0.15-0.60 | – | 0.015 | 1.5 | 0.75 | – | 0.15-0.60 | 1.0 | 0.1 | – |
| 800H | 19.0-23.0 | – | 39.5 | – | 30.0-35.0 | 0.15-0.60 | – | 0.015 | 1.5 | 0.75 | – | 0.15-0.60 | 1.0 | 0.05-0.10 | – |
| 800HT | 19.0-23.0 | – | 39.5 | – | 30.0-35.0 | 0.25-0.60 | – | 0.015 | 1.5 | 0.75 | – | 0.85-1.20 | 1.0 | 0.06-0.10 | – |
Mechanical Properties :
| Grade | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
|---|---|---|---|
| Alloy 600 | 45,000 Psi, 310 MPa | 95,000 Psi, 655 MPa | 40% |
| Alloy 601 | 30,000 Psi, 205 MPa | 80,000 Psi, 550 MPa | 30% |
| Alloy 625 | 75,000 Psi, 517 MPa | 135,000 Psi, 930 MPa | 42.50% |
| Alloy 718 | 70,000 Psi, 482 MPa | 135,000 Psi, 30 MPa | 45% |
| Alloy X-750 | 868 MPa | 1267 MPa | 25% |
| Alloy 800 | 310 MPa, 45000 psi | 655 MPa, 95000 psi | 45 % |
| Alloy 800H | 310 MPa, 45000 psi | 655 MPa, 95000 psi | 45 % |
| Alloy 800HT | 310 MPa, 45000 psi | 655 MPa, 95000 psi | 45 % |
