Hastalloy

Hastalloy Flange Specification:


RANGE:1/2" (15 NB) to 48" (1200NB)

FLANGE STANDARDS: ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, BS, GOST, MSS SP-44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605
TYPES : FLAT FACE FLANGE (FF), RAISED FACE FLANGE (RF), RING JOINT FLANGE (RTJ), LAP JOINT FLANGE, MALE AND FEMALE FLANGE (M&F), LARGE AND SMALL TONGUE-AND-GROOVE FLANGE (T&G)

HASTALLOY GRADES : Hastelloy B (UNS N10001), Hastelloy B-2 (UNS N10665), Hastelloy B-3 (UNS N10675), Hastelloy C-22 (UNS N06022), Hastelloy C-276 (UNS N10276), Hastelloy G-30 (UNS N06030), Hastelloy G-35 (UNS N06035), Hastelloy X (UNS N06002),



Hastalloy Fasteners Specification:


RANGE:M3 - M56 | 3/6" to 2" | CUSTOM SIZES
Fasteners STANDARDS : ASTM B348/ ASME SB348
LENGTH:6mm to 500mm

TYPES : TITANIUM HEX BOLTS, TI STUD BOLTS, TITANIUM ALLOY SCREWS,TI ALLOY WASHERS, TITANIUM THREADED ROD,TITANIUM SOCKET HEAD CAP SCREWS

HASTALLOY GRADES : Hastelloy B (UNS N10001), Hastelloy B-2 (UNS N10665), Hastelloy B-3 (UNS N10675), Hastelloy C-22 (UNS N06022), Hastelloy C-276 (UNS N10276), Hastelloy G-30 (UNS N06030), Hastelloy G-35 (UNS N06035), Hastelloy X (UNS N06002),

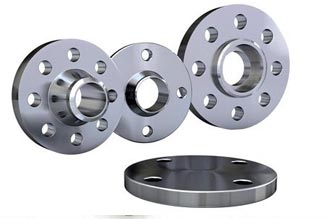

Hastalloy Flange

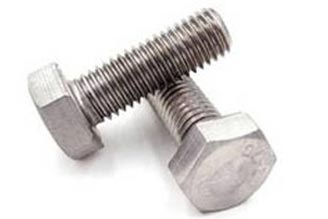

Hastalloy Fastener






Chemical Compositions:


Chemical Elements %
Grades Chromium Molybdenum Cobalt Iron Carbon Nickel Sulphur Phosphorus Manganese Silicon
Hastelloy C276 20.0-22.5% 12.5-14.5% 2.50% max 2.00-6.00% 0.01% Max balance 0.02% max 0.02% max 0.50% max 0.08% max
Hastelloy C22 20.5-23.0% 8.00-10.0% 0.50-2.50% 17.0-20.0% 0.05-0.15% Balance 0.03% max 0.04% max 1.00% max 1.00% max
Hastelloy B2 1.00% max 26.0-30.0% 1.00% max 2.00% max 0.02% Max balance 0.30% max 0.03% max


Mechanical Properties :


Mechanical properties
Grades Tensile Strength Yield Strength Elongation at break Hardness, Brinell
Hastelloy C276 680 MPa 300 MPa 50% 210
Hastelloy C22 660 MPa 240 MPa 35% …
Hastelloy B2 760 MPa 350 MPa 40% …
